45pcs/min Visual Positioning Machine For Rigid Box Making

Name: 45pcsmin Visual Positioning Machine For Rigid Box Making
Brand: Longxingsheng
Price: 1 USD

Quality 45pcs/min Visual Positioning Machine For Rigid Box Making for sale

Brand Name : Longxingsheng

Model Number : LS-450plus

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 15sets/month

Delivery Time : 7-15 work days

Packaging Details : With paper,film and by wooden crate.

Type : Multi-Function Packaging Machine

Showroom Location : Italy

Application : Beverage

Contact Now

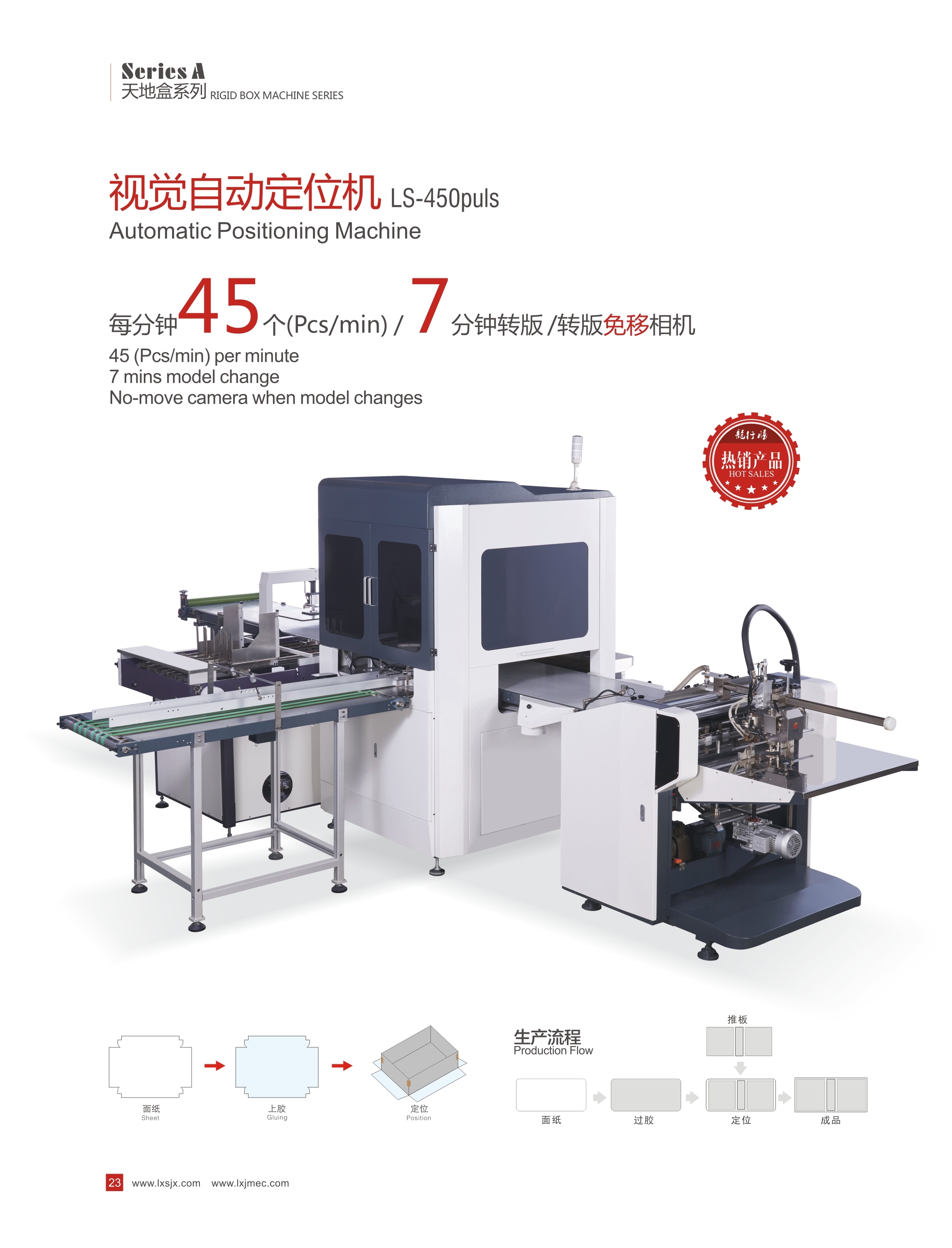

LS-450plus Automatic Visual Positioning machine for rigid box and hard cover

1. High speed, Max speed is 45 pcs/min.

2. Easy operation, the min seting time of change model is 7 minutes.

3. No-move camera when change sizes.

4. Double Germany Basler cameras (ten million pixels).

5. Dual feeding system, one button change box feeding to hardcover feeding system.

6. Anti-leaking gluing system.

7. Panasonic Servo motor feeding system. 8. Storage function for the positioning part, easy to adjustment

9. Yamaha Robotic arm.

10. Box detecting system.

Visual positioning machine is a core parts for rigid box production. It is widely applied since 2017. As the visual positioning has stable and high positioning accuracy than manual positioning. It has faster model changing speed than sensor positioning. The fastest setting time of visual positioning parts is 7 minutes. Nowadays, the visual positioning has been applied in the production of rigid box, gift box, shoe box, cellphone box, cosmetic box, ring box, jewelry box, tea box etc. It is also able to positioning the hardcover, some customer able to using visual positioning for small case order. LS-450 Plus is a dual functional visual positioning machine. It is able to positioning the rigid box and hardcover. The working model able to change by one button. The visual positioning system is able to be upgrade. The whole line is able to upgrade to fully automatic line if need.

45pcs/min Visual Positioning Machine For Rigid Box Making

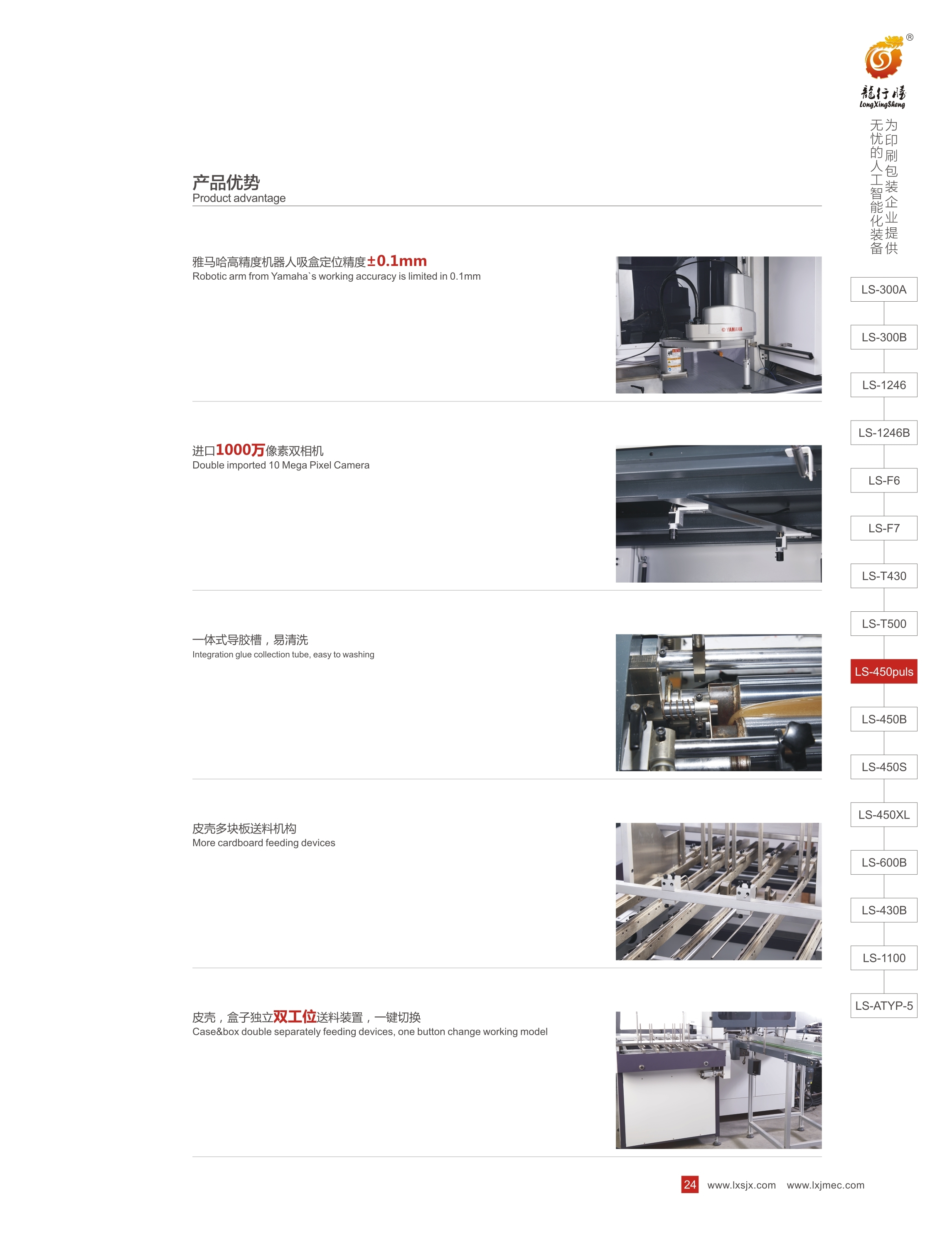

Main features


Price vary with raw material cost, please contact our sales for latest prices.

Standard configurations

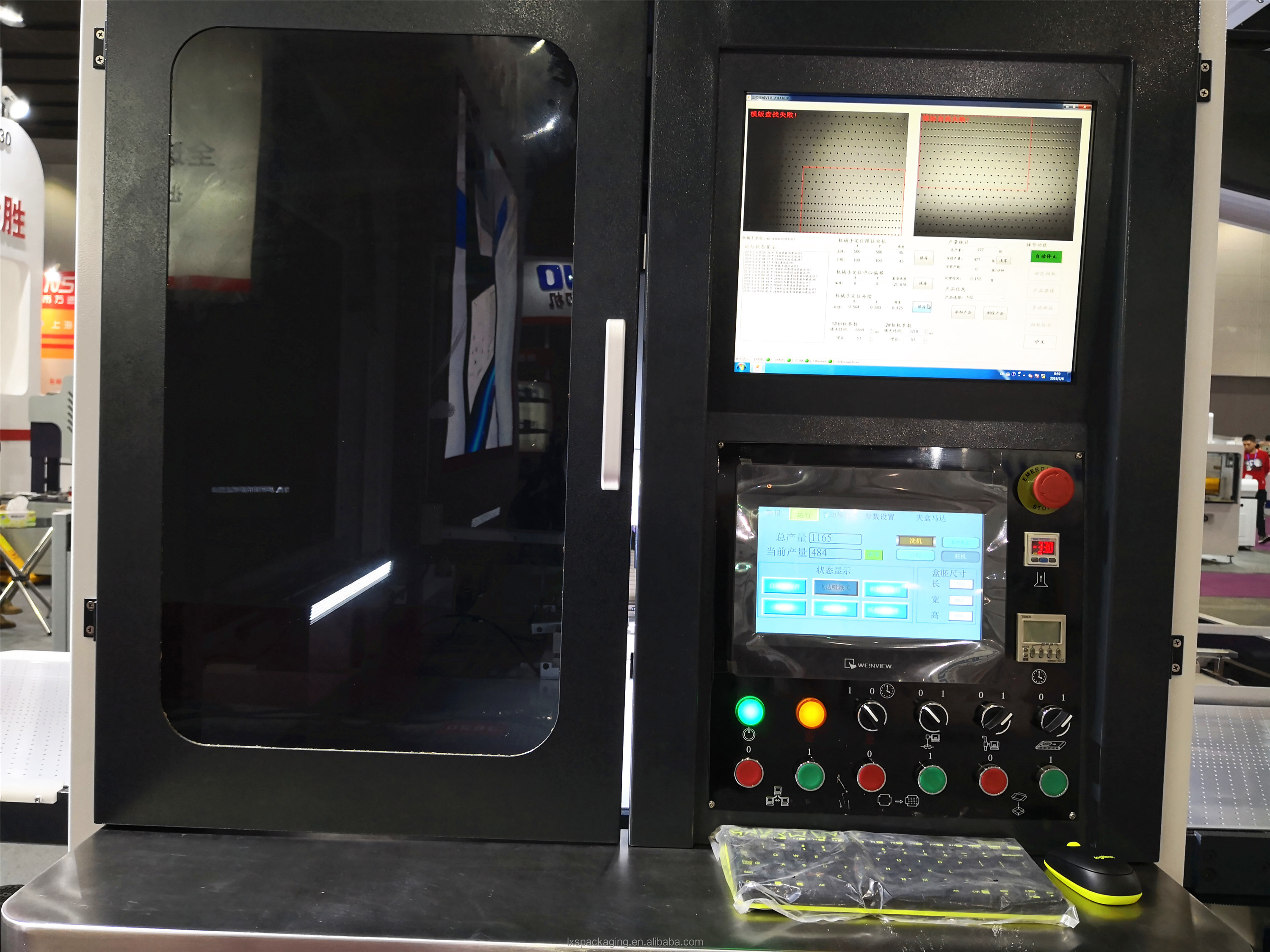

1. Control table

2. Electric box

3. Servo motor paper feeding

4. Gluing parts

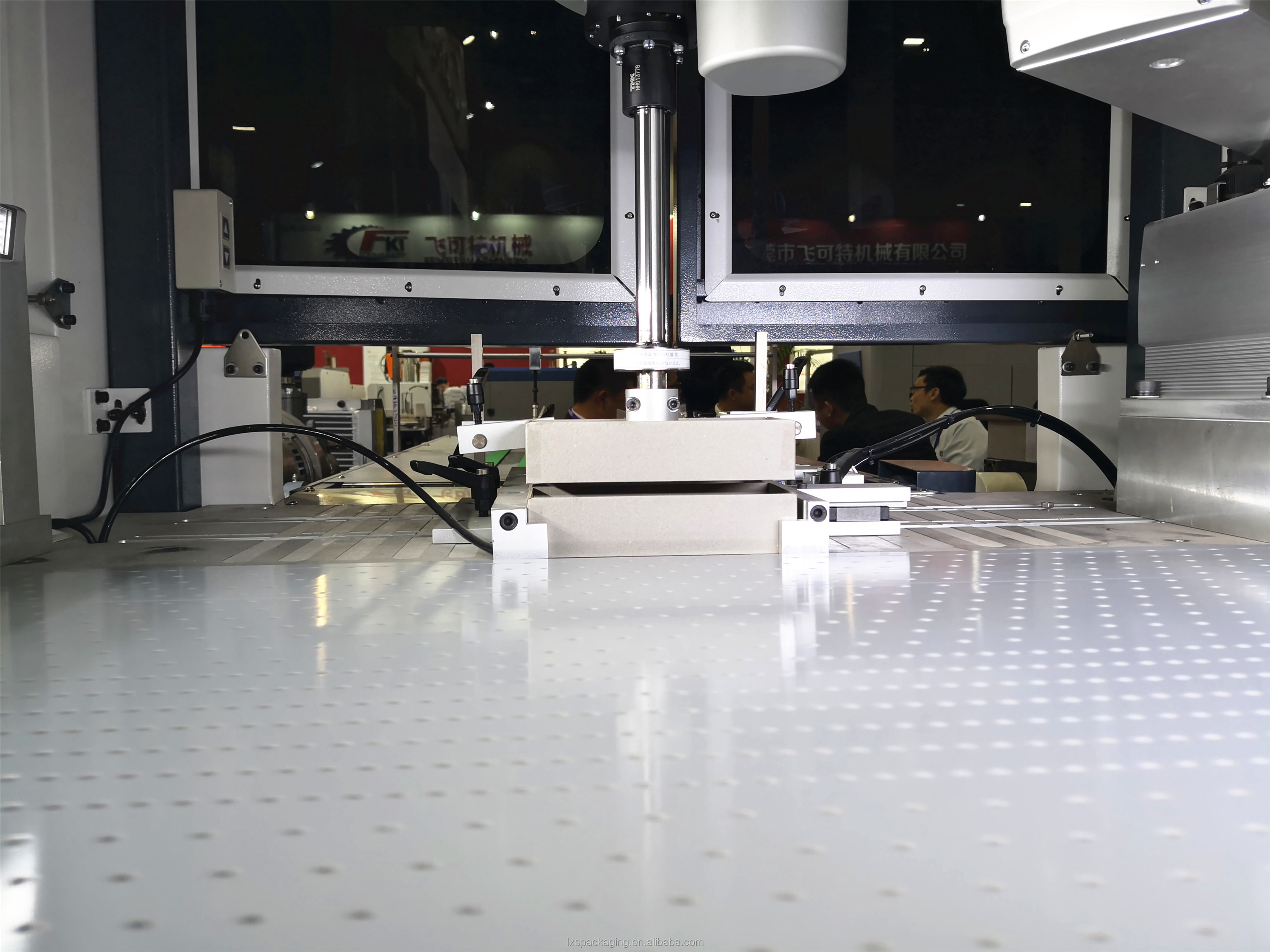

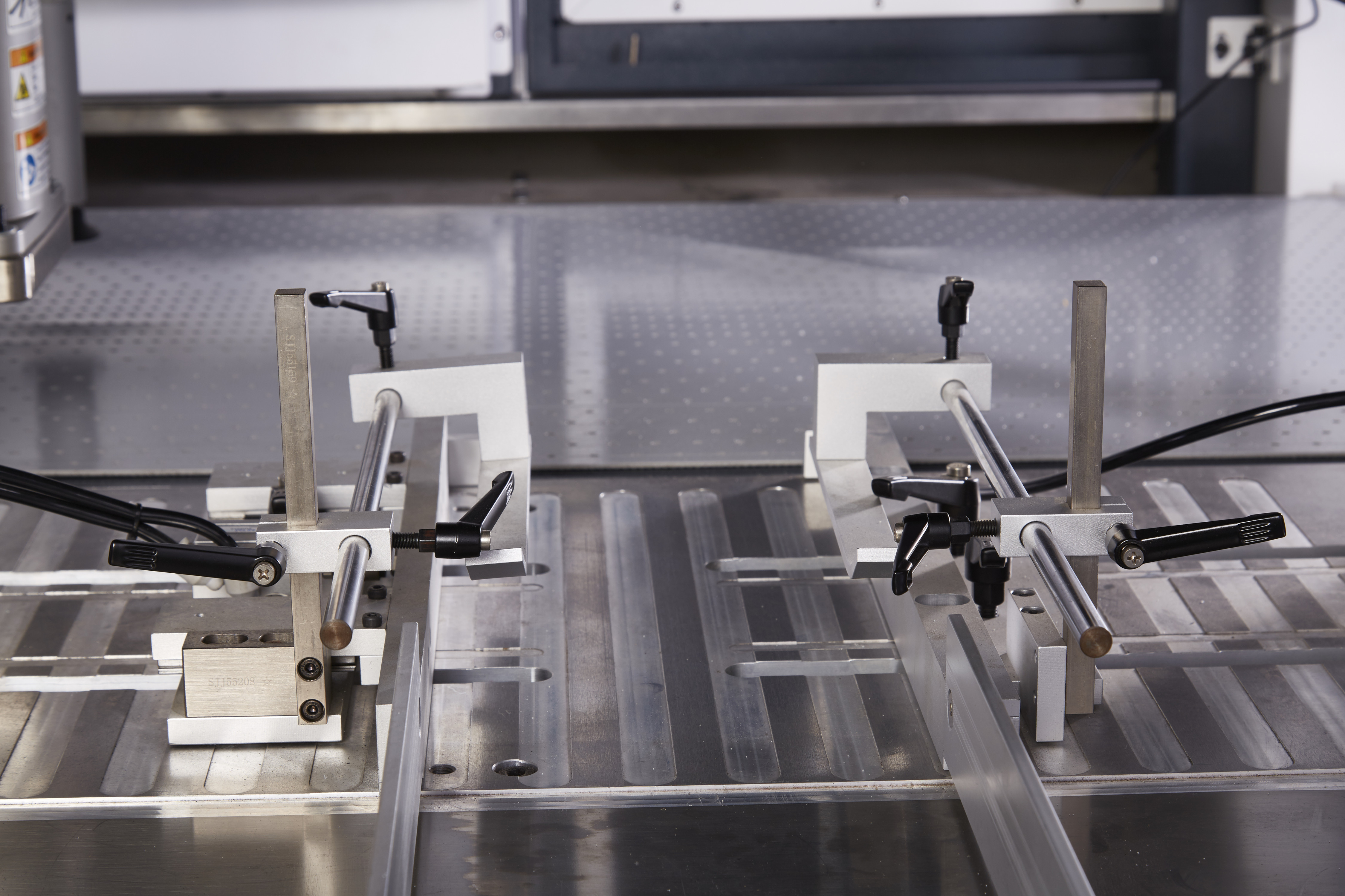

5. Positioning parts

6. Double fixed camera

7. Dual feeding stations

8. Box clamping device

9. Hot melt glue tank

Optional function

Glue Viscosity Device (Optional device)

Automatic detecting the hot melt glue thickness.

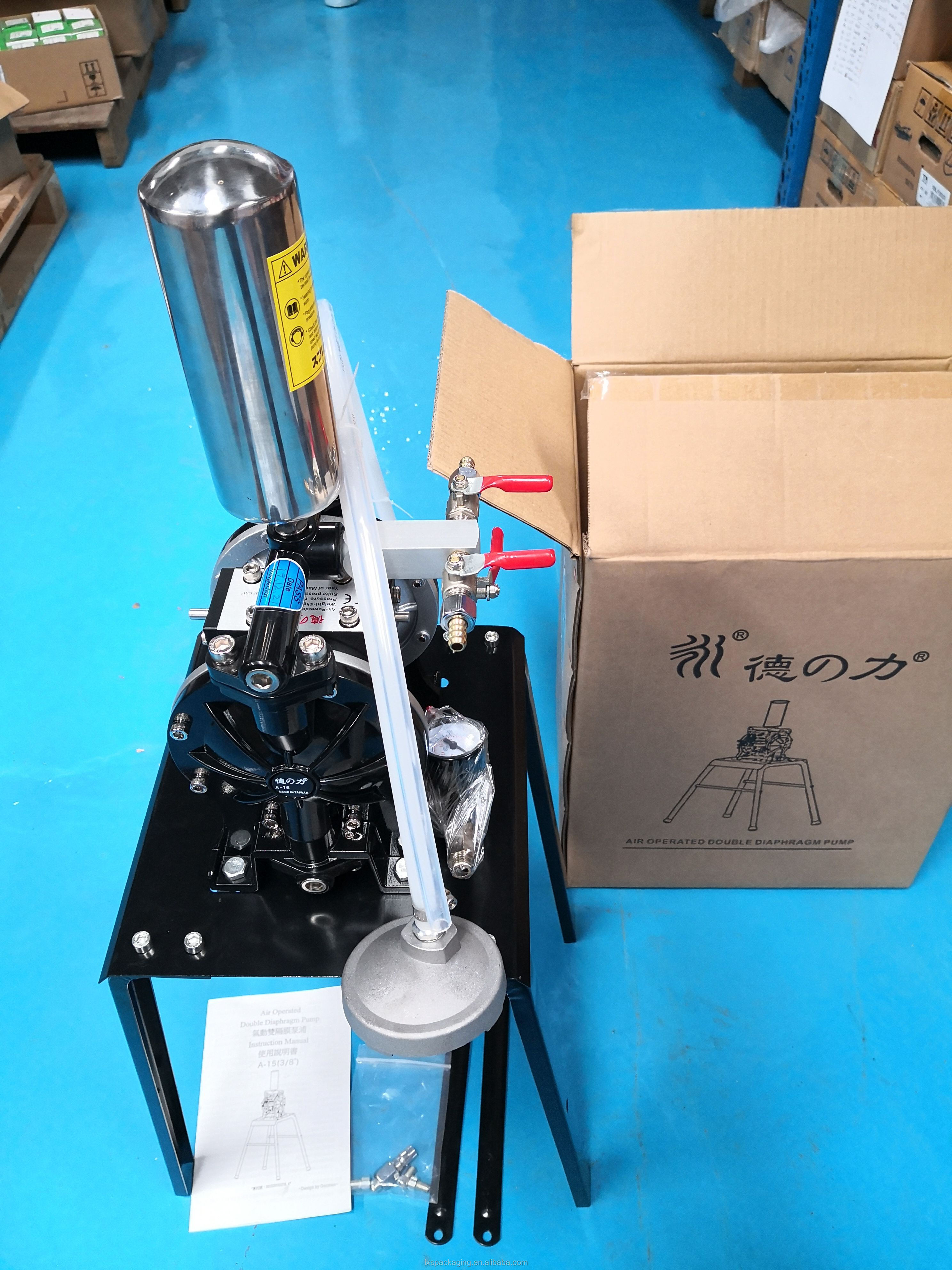

Air Operated Double Diaphragm Pump (Optional device)

Applied in white glue pumping.

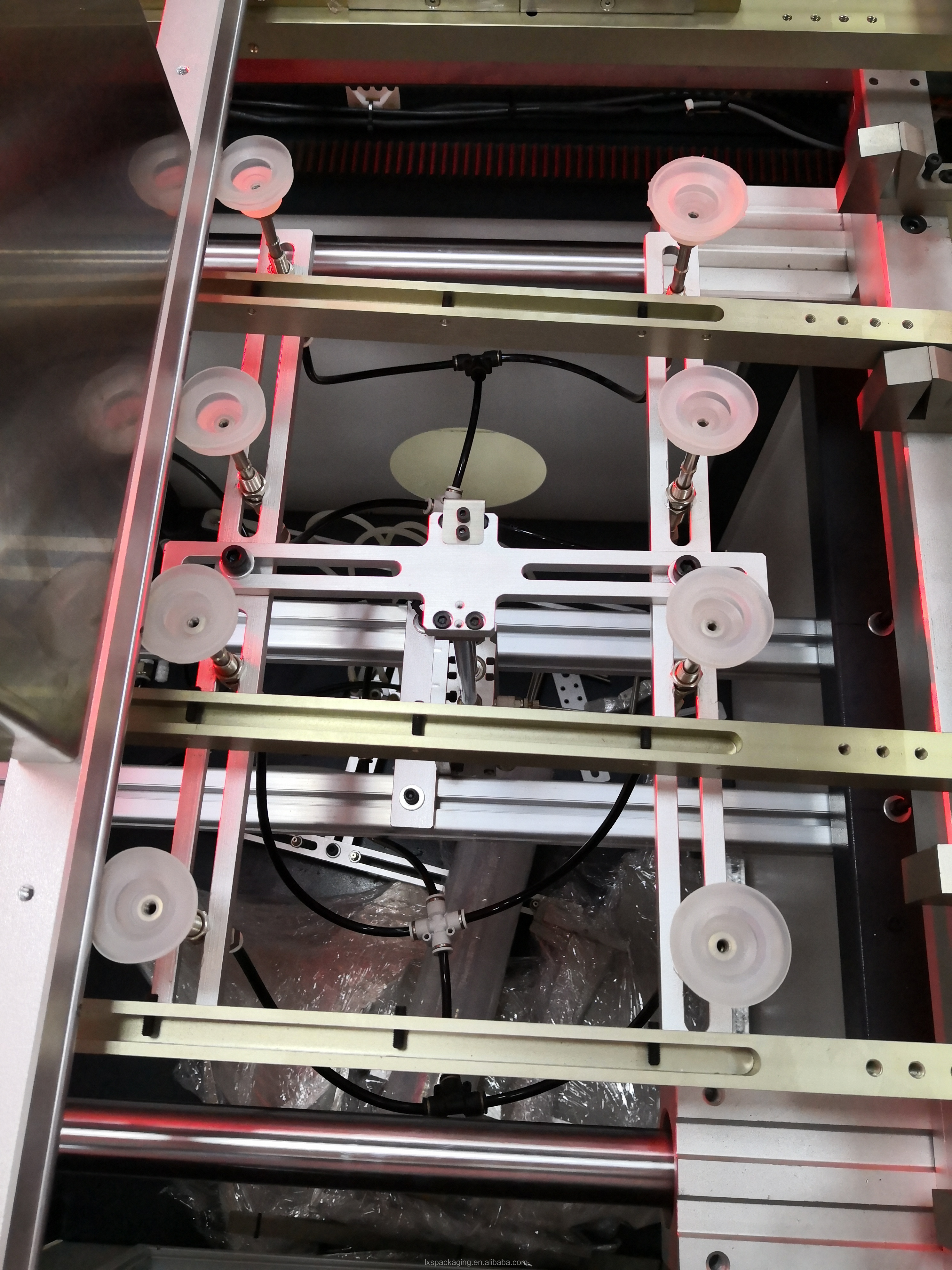

Bottom sucker hardcover feeding device (Optional device)

Special design for feeding hardcover, to avoid scraping hardcover.

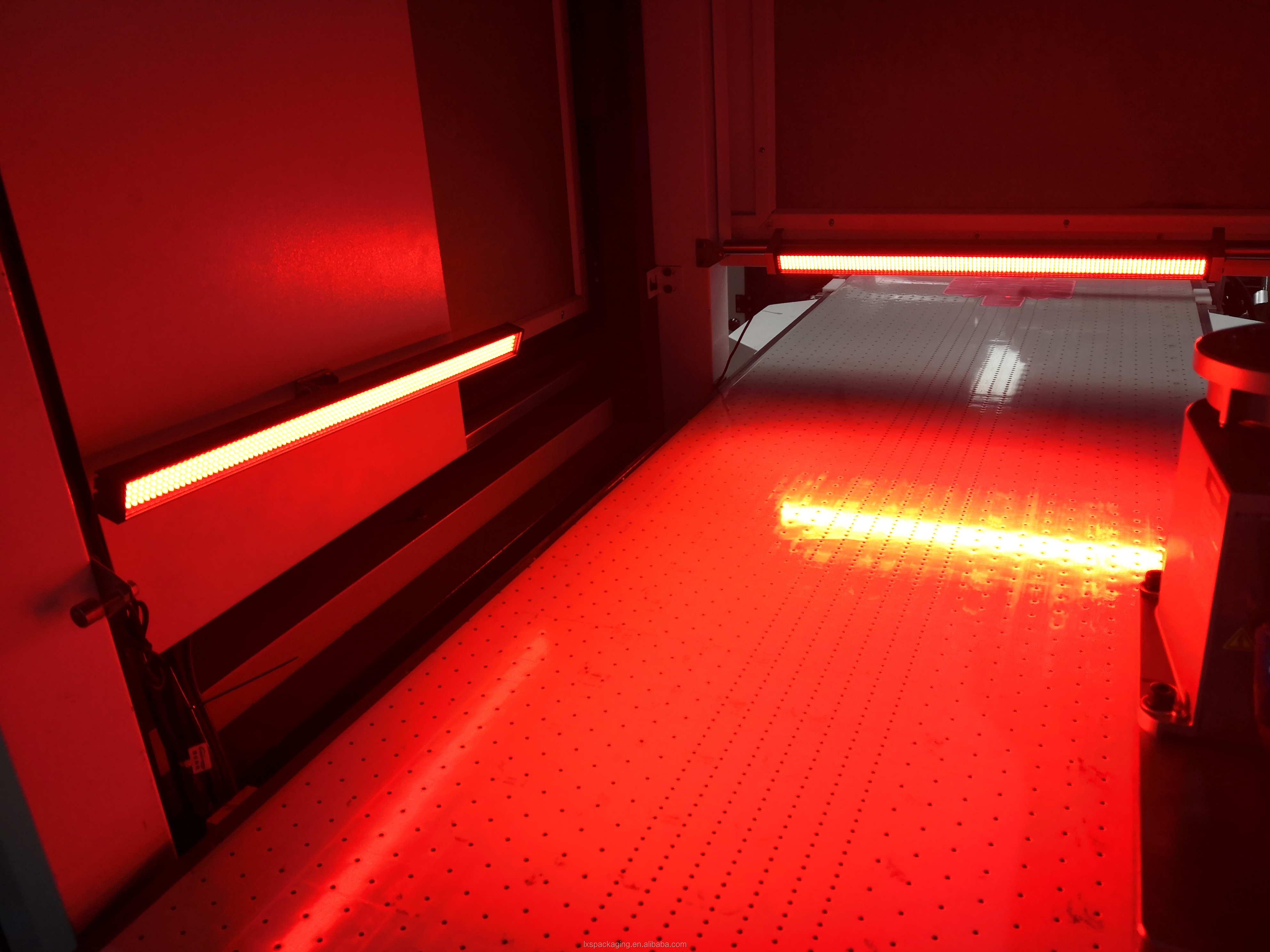

Strip light

Able to choose red light or white light.

Local Language Operation System (Optional )

Local language operation system avialable, including Korea, Vietness, Spanish, Russian,Turkish etc.
